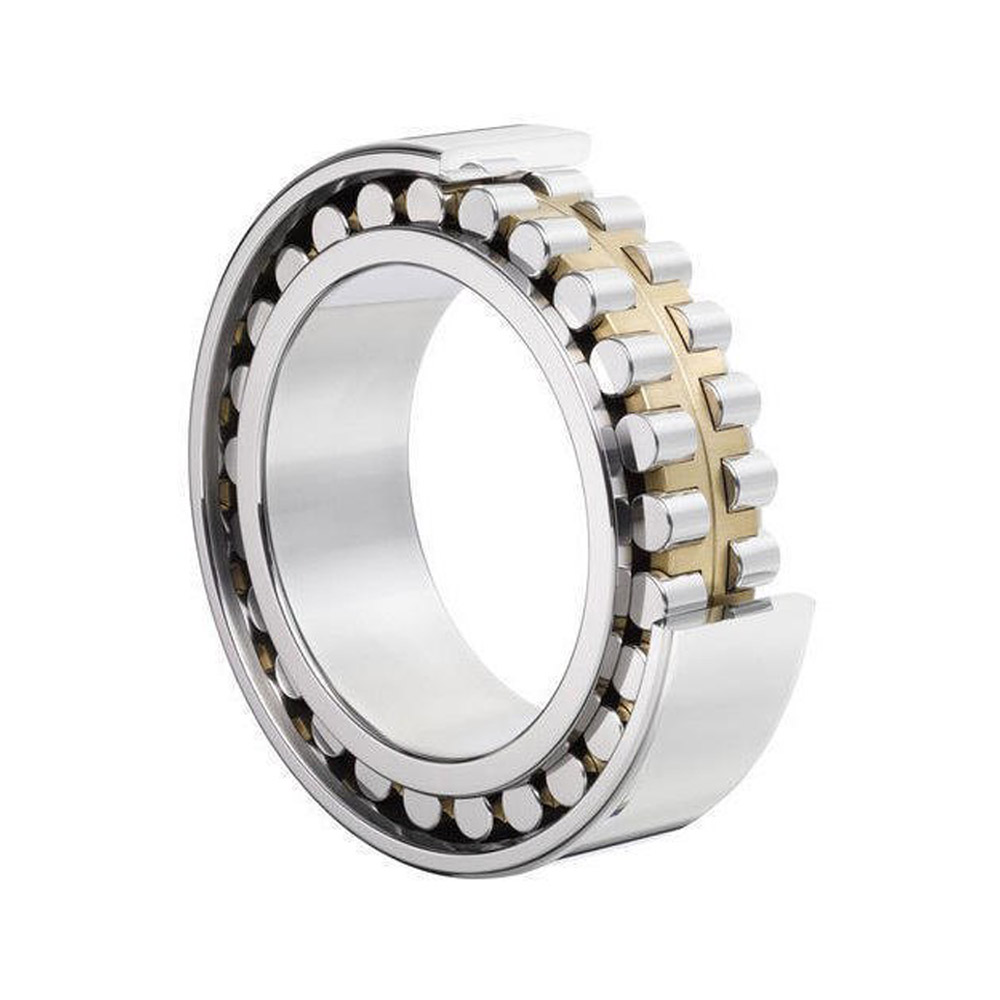

Cylindrical Roller Bearings

Description

N2XX, NF2XX, NJ2XX, NJ22XX,
NU2XX, NU10XX, NUP2XX, NUP22XX,NU22XX
N3XX, NF3XX, NJ3XX, NJ23XX, NU3XX, NUP3XX, NUP23XX
N4XX, NF4XX, NJ4XX, NU4XX, NU23XX, NUP4XX

INCH SERIES:
CRL, CRM, CFL, CFM
Available in steel, brass, and polyamide cages

Suitable for
Carry heavy radial load at high-speed application
Compact space
Carry axial displacement
Non-bearing location installation

Types of Cylindrical Roller Bearings:

• NU Design – Outer ring has two integral flanges, while inner ring had no flange.
• N Design – Inner ring has two integral flanges while outer ring has no flange.
• NJ Design – Outer ring has two integral flanges and inner ring has one integral flange.
• NUP Design – Outer ring has two integral flanges and inner ring had one integral flange & loose flange ring for both side axial locations
